STM32F103C8T6 - STM32 Development Board original (The Blue Pill) WEACT

STM32F103C8T6 - STM32 Development Board original (The Blue Pill) WEACT

The Blue Pill is a development board based on ST Microelectronics STM32F103C8T6A microcontroller that has an ARM Cortex-M3 core that runs at 72MHz max. Software libraries are available that allow users to program the chip using the Arduino IDE.

It is possible to use our STLink V2 device programmer to debug and download code into the board.

Features

  • Microcontroller:    STM32F103C8T6
  • ARM® 32-bit Cortex® -M3 CPU
  • 72 MHz max CPU frequency
  • Voltage from 2 V to 3.6 V
  • 64 KB Flash
  • 20 KB SRAM
  • Communication:    I2C, SPI, UART, CAN, USB Type C
  • GPIO with external interrupt capability
  • Up to 7 Timers (3 x 16-bit timers, 1 x PWM timer, 2 x watchdog timers and
  •  a SysTick timer)
  • RTC
  • USE CABLE USB Type C

 Introduction to the STM32 Blue Pill (STM32F103C8T6)



$1.02

Original: $3.41

-70%
STM32F103C8T6 - STM32 Development Board original (The Blue Pill) WEACT—

$3.41

$1.02

More Images

STM32F103C8T6 - STM32 Development Board original (The Blue Pill) WEACT - Image 2

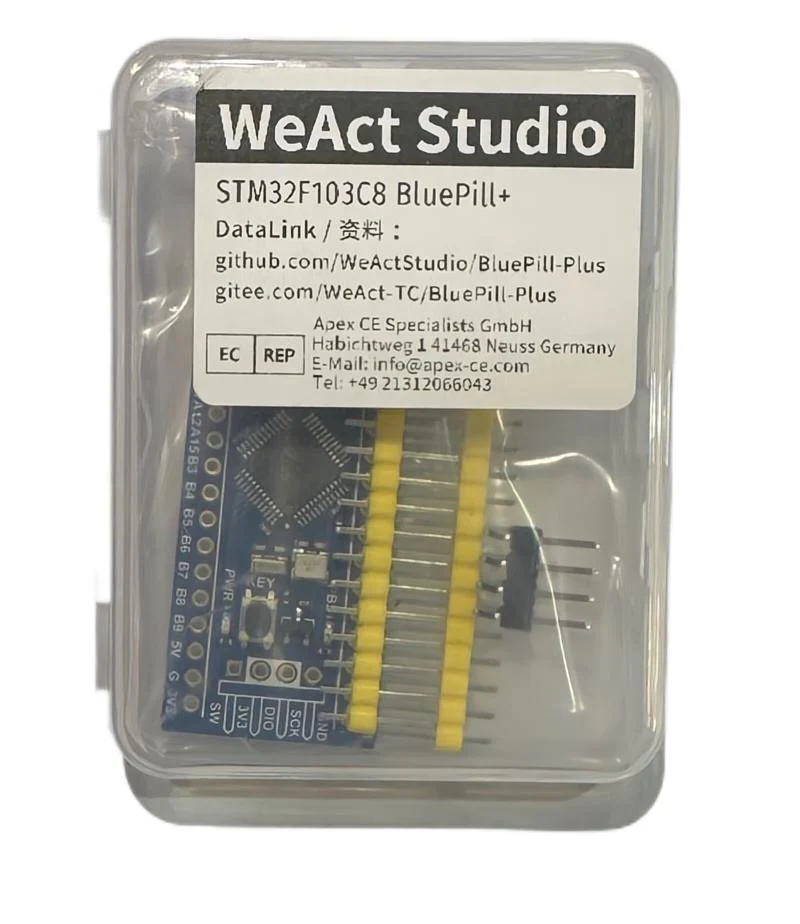

STM32F103C8T6 - STM32 Development Board original (The Blue Pill) WEACT - Image 3

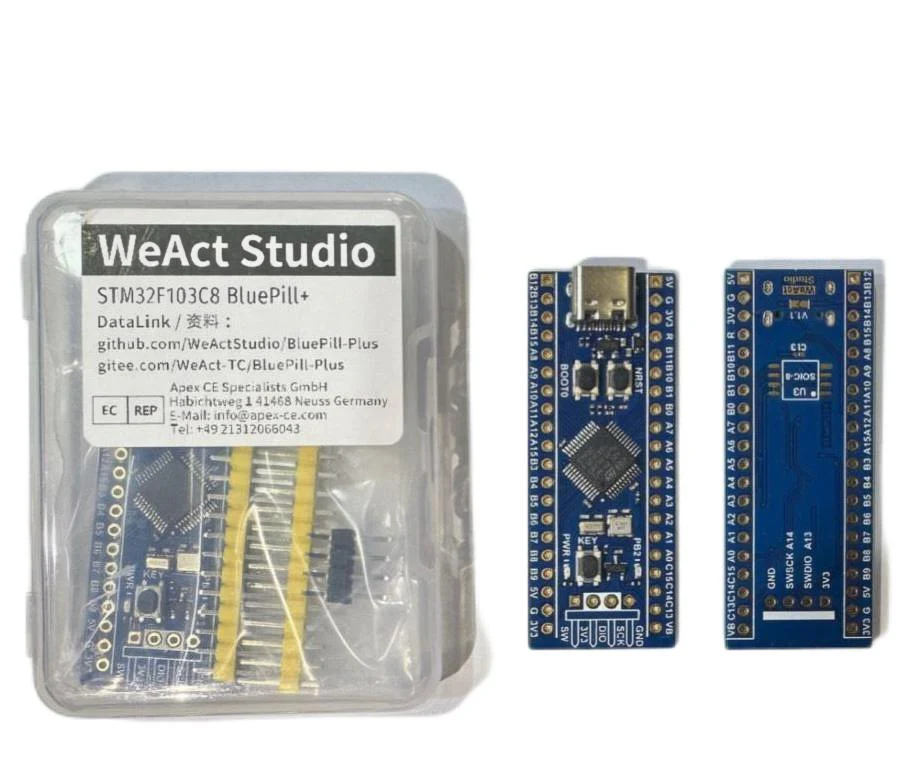

STM32F103C8T6 - STM32 Development Board original (The Blue Pill) WEACT - Image 4
