Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M
HomeStore

Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M

Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M

 42HS32  This 4-wire bipolar stepper has 1.8° per step for smooth motion and 3.2 kg.cm holding torque. The motor was specified to have a max current of 350mA so that it could be driven easily with

Some nice details include a ready-to-go cable and a machined drive shaft (so you can easily attach items).

  • 200 steps per revolution, 1.8 degrees
  • Bipolar stepper
  • 4-wire, 12 inch leads
  • 42mm/1.65" square body
  • 31mm/1.22" square mounting holes, 3mm metric screws (M3)
  • 12V rated voltage (you can drive it at a lower voltage, but the torque will drop)
  • Max current:  1.0 A
  • 32 N*cm, 3.2 Kg*cm holding torque per phase
  • 35 ohms per winding





$1.88

Original: $6.26

-70%
Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M—

$6.26

$1.88

More Images

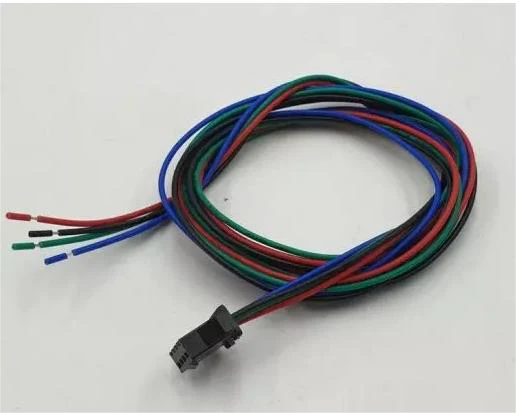

Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M - Image 2

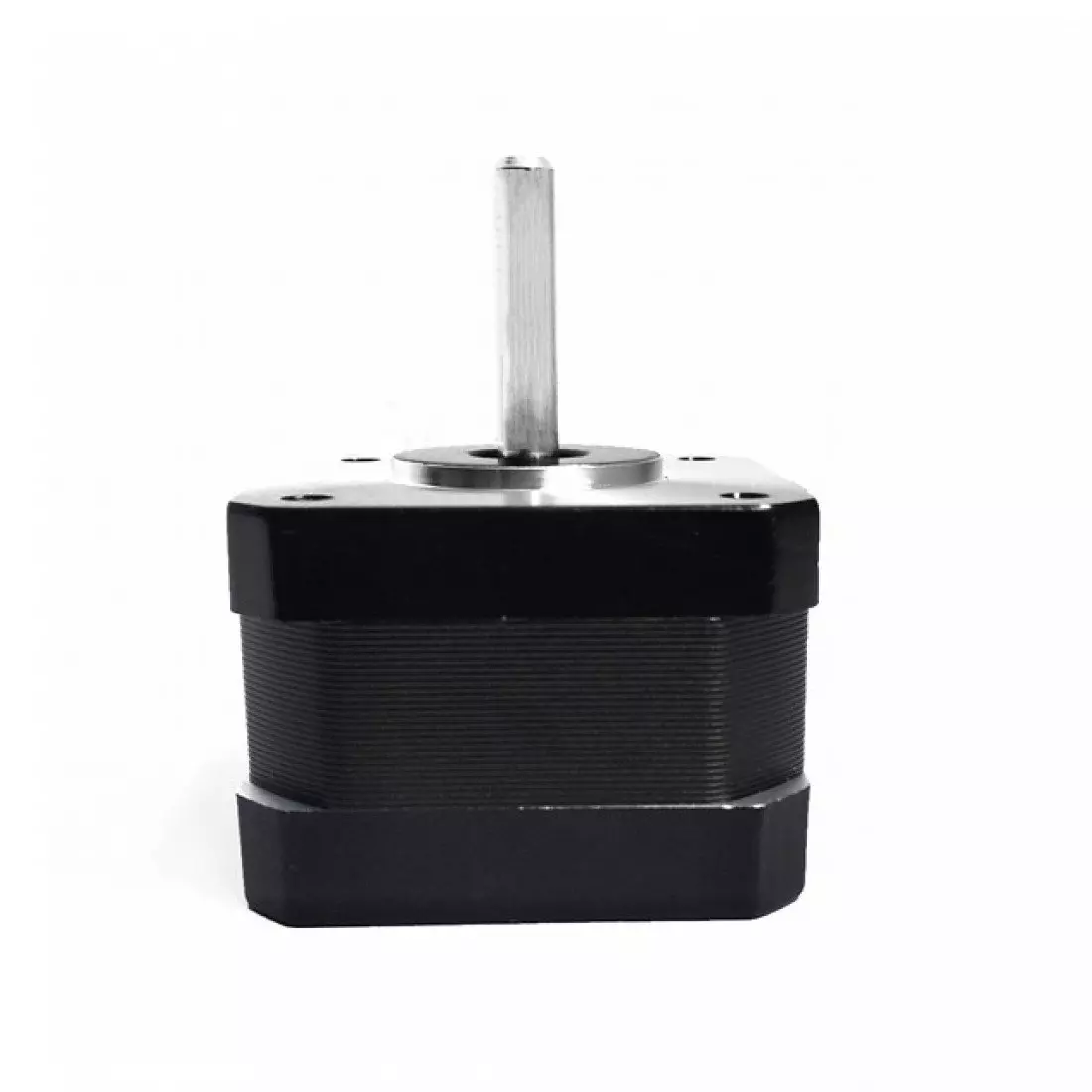

Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M - Image 3

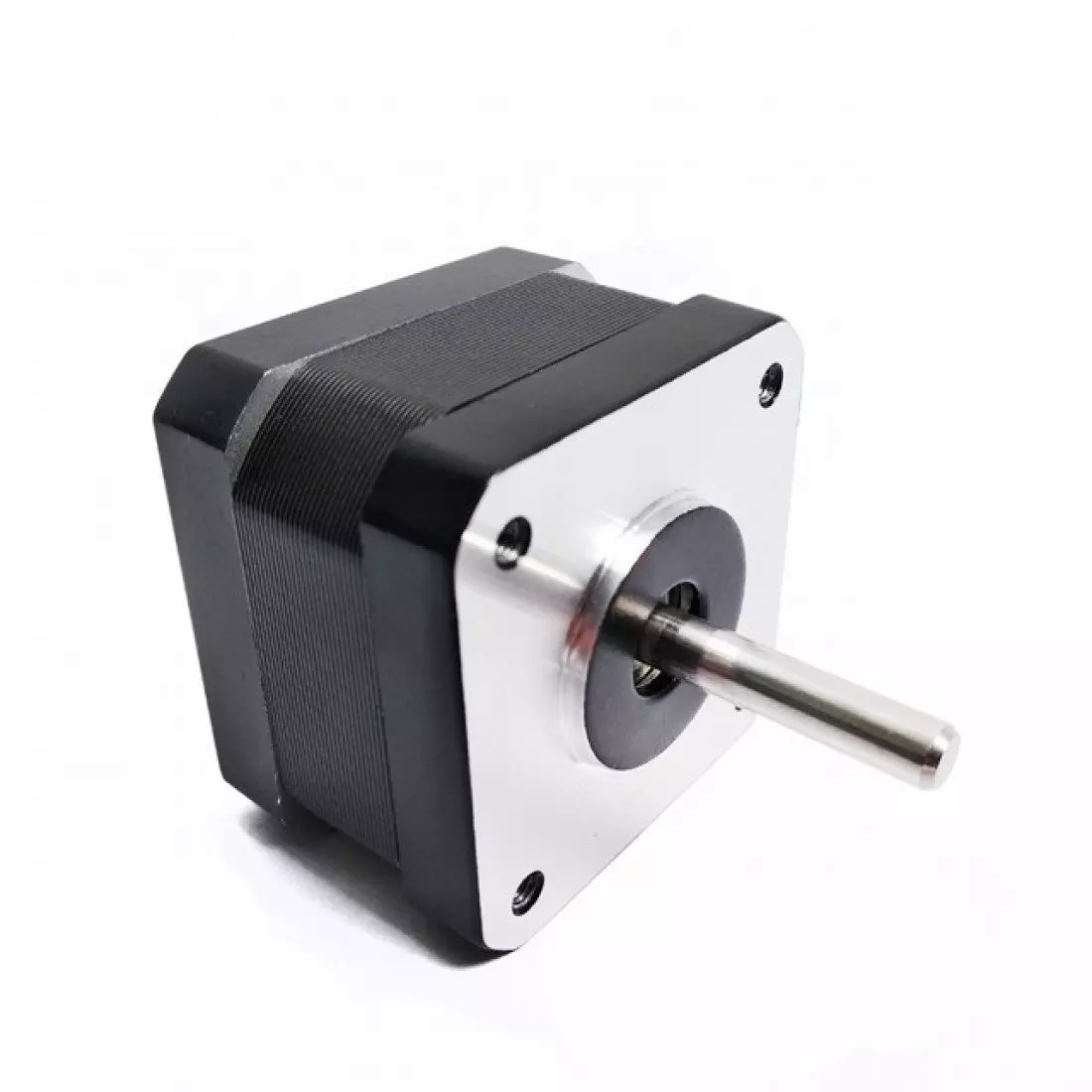

Stepper Motor 42HS32 NEMA17 MAX. 0.32 N.M

 42HS32  This 4-wire bipolar stepper has 1.8° per step for smooth motion and 3.2 kg.cm holding torque. The motor was specified to have a max current of 350mA so that it could be driven easily with

Some nice details include a ready-to-go cable and a machined drive shaft (so you can easily attach items).

  • 200 steps per revolution, 1.8 degrees
  • Bipolar stepper
  • 4-wire, 12 inch leads
  • 42mm/1.65" square body
  • 31mm/1.22" square mounting holes, 3mm metric screws (M3)
  • 12V rated voltage (you can drive it at a lower voltage, but the torque will drop)
  • Max current:  1.0 A
  • 32 N*cm, 3.2 Kg*cm holding torque per phase
  • 35 ohms per winding





Product Information

Shipping & Returns

Description

 42HS32  This 4-wire bipolar stepper has 1.8° per step for smooth motion and 3.2 kg.cm holding torque. The motor was specified to have a max current of 350mA so that it could be driven easily with

Some nice details include a ready-to-go cable and a machined drive shaft (so you can easily attach items).

  • 200 steps per revolution, 1.8 degrees
  • Bipolar stepper
  • 4-wire, 12 inch leads
  • 42mm/1.65" square body
  • 31mm/1.22" square mounting holes, 3mm metric screws (M3)
  • 12V rated voltage (you can drive it at a lower voltage, but the torque will drop)
  • Max current:  1.0 A
  • 32 N*cm, 3.2 Kg*cm holding torque per phase
  • 35 ohms per winding
