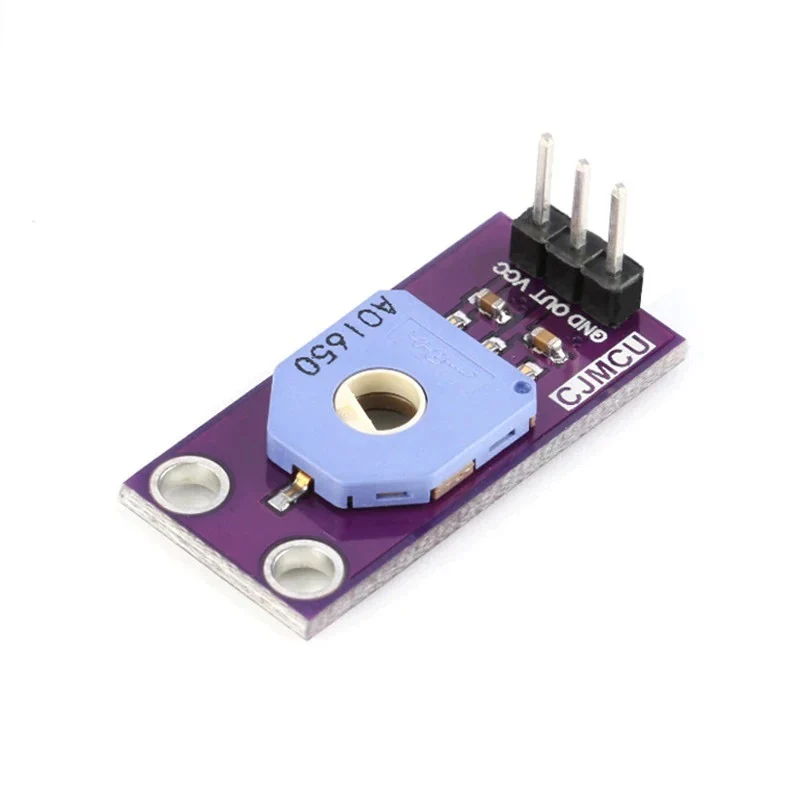

Rotary Position Sensor Module

This rotary position sensor is based on on Murata SV01A103AEA01R00 rotary sensor which is widely used in wipers and automotive. The sensor rotary position (angle from 0 degree to 333.3 degree). This is high reliability dust proof rotary sensor module.

Features

• Effective Rotational Angle: 333.3°

• Total Resistance Value: 10kΩ

• Rated Voltage: 5Vdc

• Torque(max.): 2mN.m

• Torque(max.): 2mN.m

• Rotational Life(max.): 1M cycles

• Operating Temperature Range: -40℃ to 85℃



Rotary position sensor SV01A103AEA01R00 datasheet

Rotary position sensor Arduino tutorial
