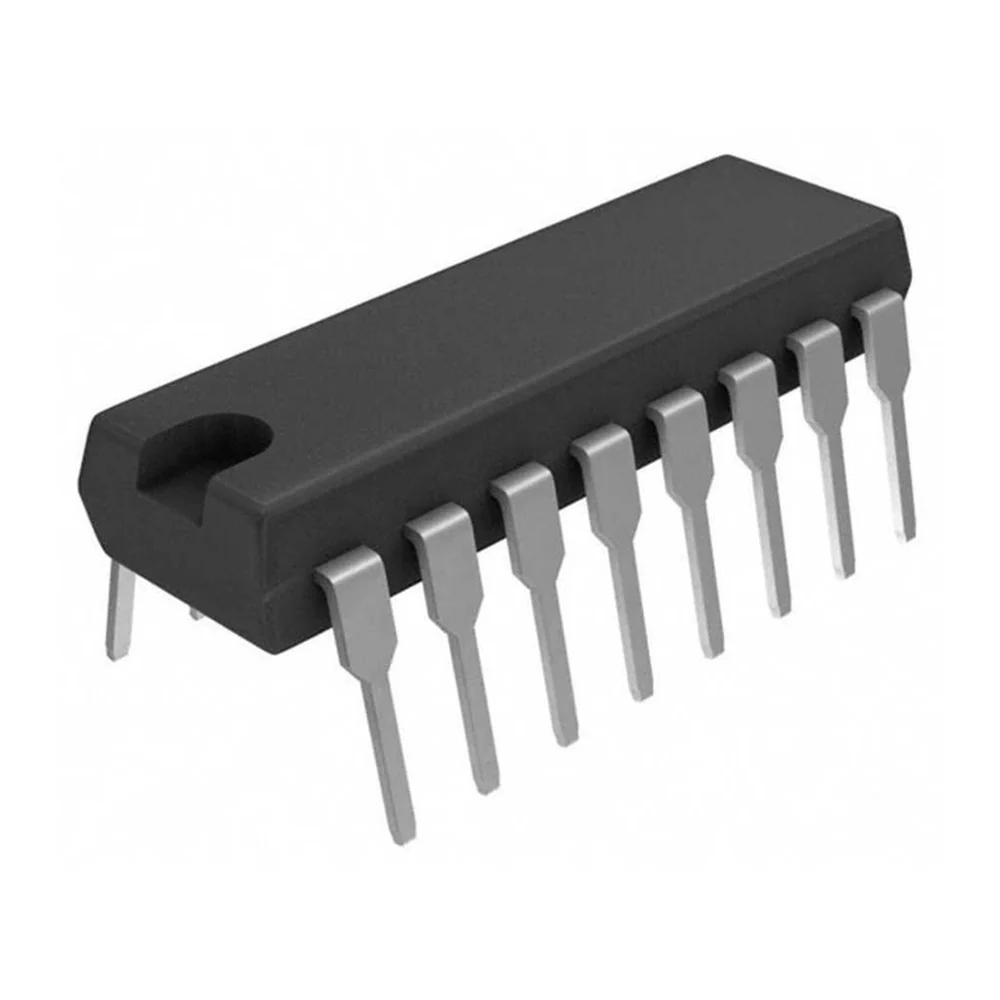

74HC151 (8-input Multiplexer)

CD74HC151E is a single 8-channel digital multiplexers having three binary control inputs , S0, S1 and S2 and an active low enable (E)\ input. The three binary signals select 1 of 8 channels. Outputs are both inverting (Y\) and non-inverting (Y).

Specification

• Propagation Delay Time: 170 ns at 2V / 29 ns at 6V
• Output Current: 5.2 mA at  6 V
• No. of Inputs: 3X 3
• No. of Pins: 16
• Operating Temperature Range: -40°C to +125°C
• Supply Voltage Range: 2V to 6V
• Package: DIP-16



Symbol	PIN	Description
S0,S1,S2	11,10,9	Common data select inputs
I0 TO I7	4,3,2,1,15,14,13,12	DATA input
Ē	7	enable input (active LOW)
Y	5	ground (0 V)
Ῡ	6	output (active LOW)
GND	8	ground (0 V)
VCC	16	positive supply voltage



For 74HC15 IC1 datasheet Click Here
